JBL DrivePack® Normal Control Panel
VP7212/64DPDA
Venue Performance Series Bi-Amp 2-Way System

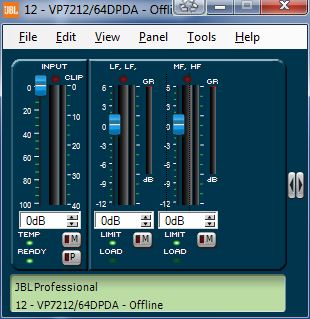

Normal : Button Mode

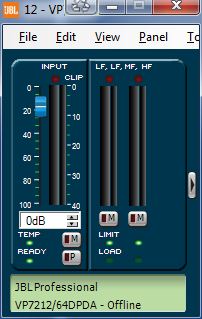

Normal : Tab Mode
Basic:
Extended Basic:
Device Attributes and Controls
Device Processing Block Functions
To access the control and processing blocks provided in the module, double clicking the processing block or button will either open a new sub-panel or cause an existing window to be recycled. The objects available are:
Input Control Sub-Panel and Input Processing Blocks
The input control sub-panel is used to configure the input section of the amplifier. Some features are accessed directly from the sub-panel and other processing functions are accessed through concealed processing blocks. To access the processing blocks provided in the module, double clicking the processing block or button will either open a new window or cause an existing window to be recycled. The objects available are:
-
Input Control and Monitor Sub-Panel - Available on all JBL devices.
-
Input Compressor - Available on all JBL devices.
-
Input Delay - Available on all JBL devices.
-
Input EQ - Available on all JBL devices.
-
Sub Filter - Available on all JBL devices.
Output Sub-panel Control and Monitor Features
This output sub-panel is used to configure the output section of the amplifier. Output control and monitor functionality is identical to similar functions found in the input sub-panel. Output functions are accessed directly from the sub-panel. Output functions available are:
